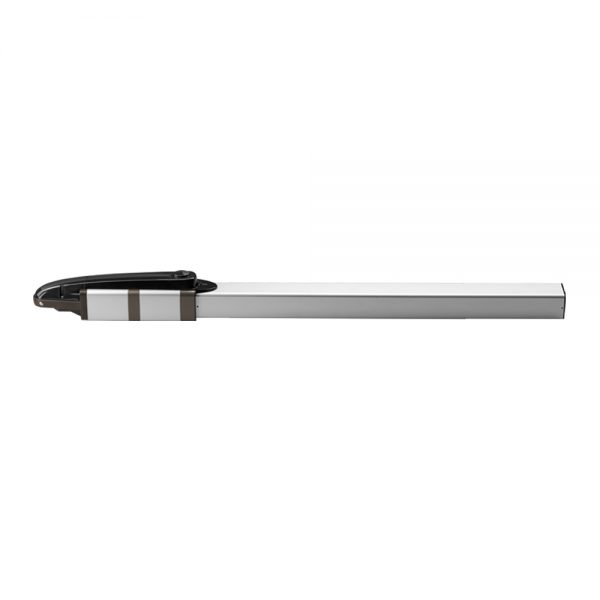

HD.5024E – Hydraulic operator for gates up to 5 m – No blocks (reversible).
HD.5024EAC – Irreversible hydraulic operator with rear and front joint for gates up to 5 m with opening and closing blocks.
Reliability and high-quality materials
Chrome-plated steel shaft and anodised aluminium profiles ensure maximum resistance to atmospheric agents. Brass bypass valves are used for greater regulation, ensuring maximum crush-resistance.
The presence of the encoder and the low voltage motor allow to optimize performance, safety level and precision in the gate movement phases.
The adjustable electronic deceleration in opening and closing allows maximum silence and fluidity of maneuver. Avoiding the strong impacts against mechanical stops also limits the risk of breakdowns in the installation.
The electric motor ensures excellent performance, optimal thrust and more intensive use.
Personalised key-operated release
The rear pivot joint makes installation easier, making up for any lack of alignment of the gate.
Perfect stroke adjustment
The adjustable front spherical joint enables perfect adjustment of the stroke, the ideal solution for systems on gates that are not perfectly aligned.
Very easy to install and maintain
Operator installation is quick and intuitive thanks to the terminal board that facilitates motor wiring. Maintenance is quick thanks to the possibility of easily replacing the power cable or control the oil level even when the operator is already installed.
