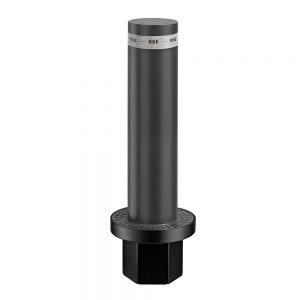

VIGILANT 800 – 24Vdc 800mm Automatic rising bollard.
Reliable high duty cycle electromechanical rising bollard. Available in a 500mm version with easy installation in comparison to competitive products, thanks to the foundation case assembly and plug and play connection from bollard to control panel.
Product features
• High number of cycles and low power consumption
• Ability to operate even in the event of a power failure thanks to the central group with UPS
• Quick and easy to install thanks to the foundation box can be assembled on site without welding
• Equipped with RS485 communication bus and Ethernet connection via TCP / IP
• Device encoder integrated obstacle detection and amperometric
• Equipped with anti-vandal function, which detects a forced command, to reset the bollard and activate an alarm
PLUG & PLAY Connection between
bollard and control panel
EN124 (40T) Top equipped
with LED lights
It can be powered
exclusively by solar panel
Maximum performance – Fast rising and lowering
IP68 connector from
motor to control panel
Easy assemble foundation
case and cover
Stainless steel
versions available
Control panels
-
- Power supply: 230/250 Vac – 50/60 Hz – transformer with selectable voltage
- Equipped with command ALL UP / ALL DOWN
- 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V
- 8-Dip switch programmable for different configurations
- Diagnostic LED
- Connection to Ethernet network via TCP / IP LAN
- Communication between the central bollard and central CP by means of the RS485 communication bus
- CP1SK, CP2SK, CP4SK version with batteries for automatic operation during power failure
- Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights)
- 6 different configurations for loop detectors
- Prepared for any kind of command
