VIGILANT500 AUTOMATIC BOLLARD

24V Automatic rising bollard

SKU VIGILANT500 Categories ,

Description

Product information

VIGILANT 500 – 24Vdc 500mm Automatic rising bollard.

Reliable high duty cycle electromechanical rising bollard. Available in an 800mm version with easy installation in comparison to competitive products, thanks to the foundation case assembly and plug and play connection from bollard to control panel.

Product features

• High number of cycles and low power consumption
• Ability to operate even in the event of a power failure thanks to the central group with UPS
• Quick and easy to install thanks to the foundation box can be assembled on site without welding
• Equipped with RS485 communication bus and Ethernet connection via TCP / IP
• Device encoder integrated obstacle detection and amperometric
• Equipped with anti-vandal function, which detects a forced command, to reset the bollard and activate an alarm



feature_1

PLUG & PLAY Connection between
bollard and control panel

feature_2

EN124 (40T) Top equipped
with LED lights

feature_3

It can be powered
exclusively by solar panel

Maximum performance – Fast rising and lowering


performance_1IP68 connector from
motor to control panel

performance_2Easy assemble foundation
case and cover

performance_3Stainless steel
versions available



Control panels


    • Power supply: 230/250 Vac – 50/60 Hz – transformer with selectable voltage
    • Equipped with command ALL UP / ALL DOWN
    • 8 control inputs / 4 control inputs for loop detectors / 2 static outputs 24 V
    • 8-Dip switch programmable for different configurations
    • Diagnostic LED
    • Connection to Ethernet network via TCP / IP LAN
    • Communication between the central bollard and central CP by means of the RS485 communication bus
  • CP1K, CP2K, CP4K version with batteries for automatic operation during power failure
  • Embedded electronics for the management of two traffic lights (no need CP.TL control board for traffic lights)
  • 6 different configurations for loop detectors
  • Prepared for any kind of command

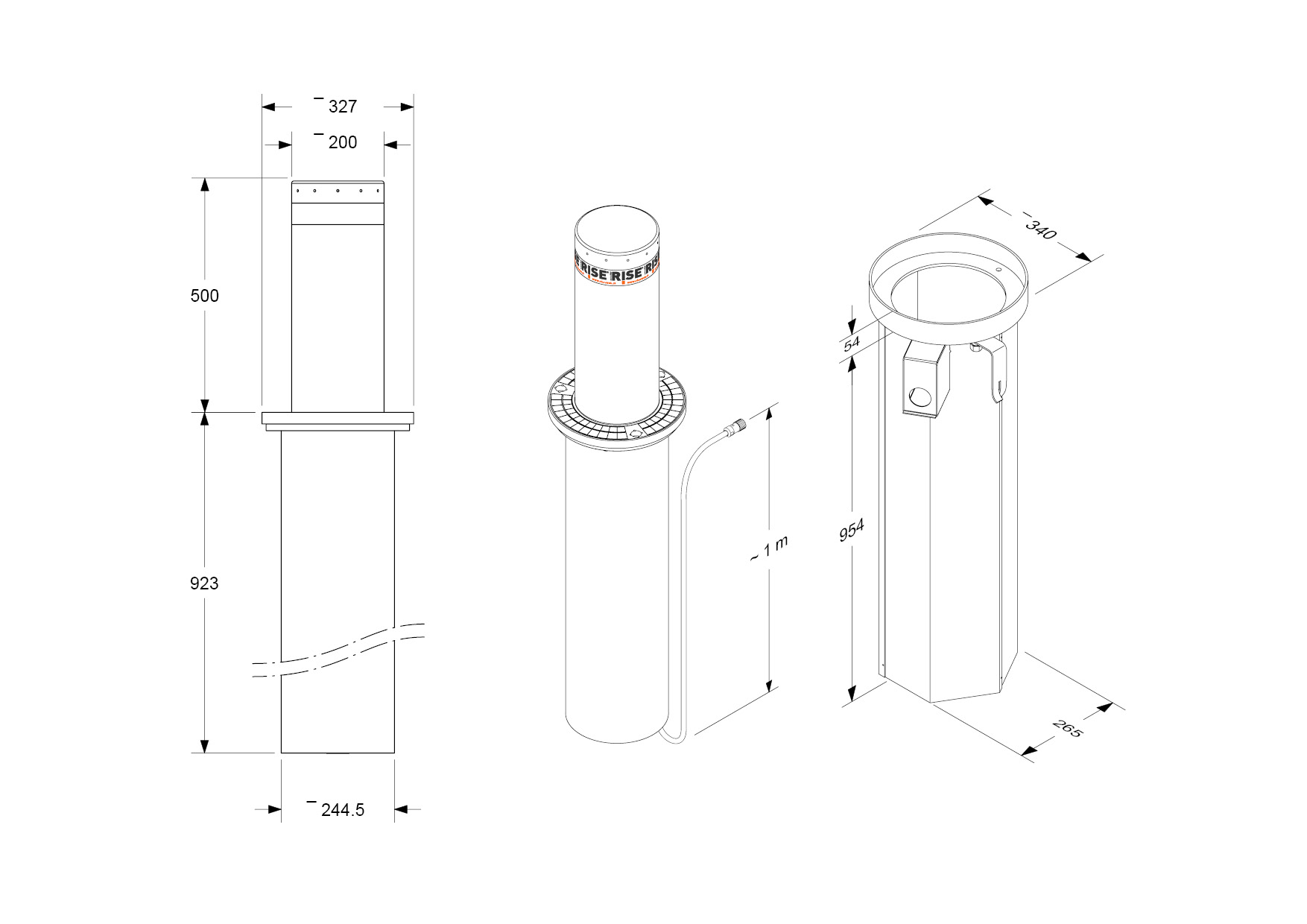

Technical Drawing:



Additional information

Bollard Diameter

200mm

Bollard Height

500mm

Battery Back-up

Yes

Download Tech Sheet

Download Datasheet
