Description

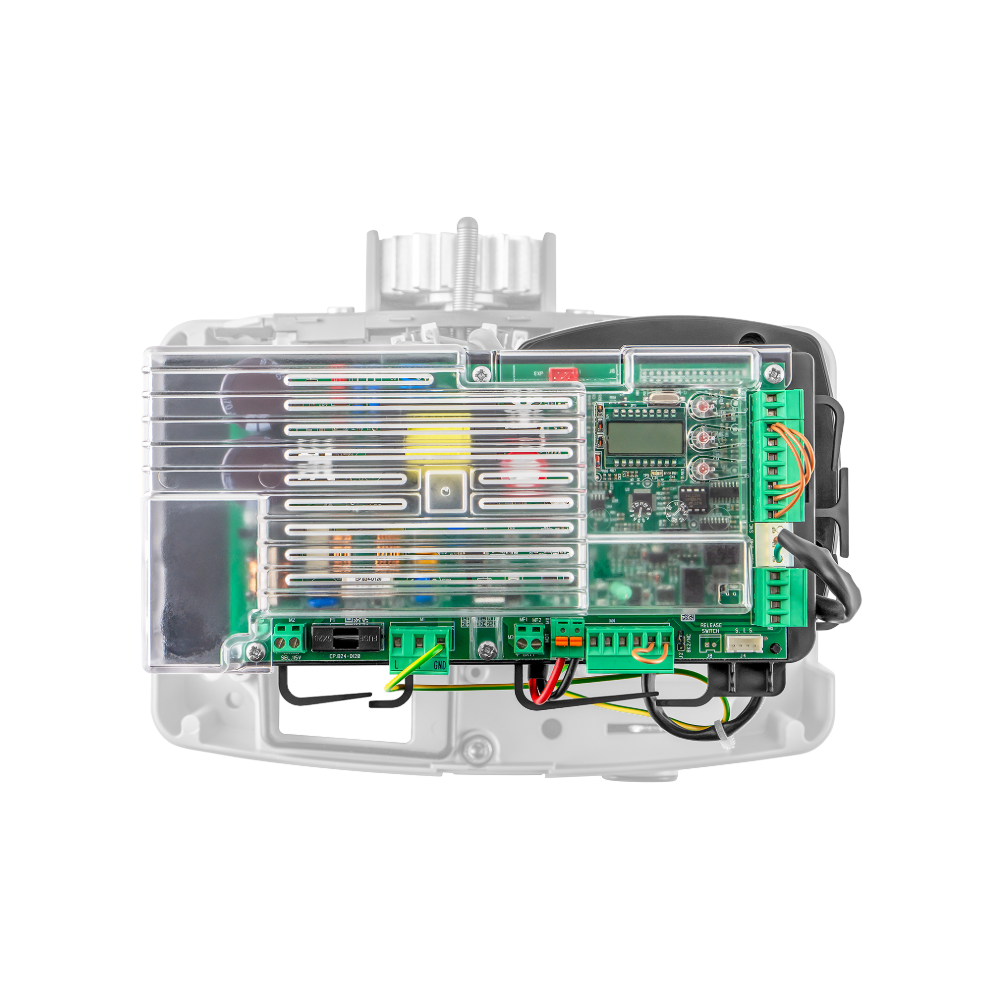

CP.B24-D120
APPLICATION
1 actuator for sliding gates, series BULL SE
CONTROL UNIT POWER SUPPLY
115 or 230 Vac (selectable) 50/60Hz
MOTORS POWER SUPPLY
24 Vdc
MAIN FUNCTIONS
Integrated LCD display I Integrated radio receiver 433.92 MHz 2048 codes with ARC coding I Removable terminal boards I Automatic, semi-automatic and HTR logic I Motor limit switch inputs I
Photocell input (PHO) active in opening and closing I Photocell input (PHC) active only in closing phase I Input for N.C. or 8K2 sensitive edge I OPEN input configurable as pedestrian I Two outputs configurable as open gate signal light, courtesy, zone light, second radio channel, photocell testing, flashing light, alarm contact I Output for connecting the flashing light I Predesigned for the operation of opposed sliding gates through SIS synchronisation board (optional) I Set up for connection to KNX connection through X.BE board (optional) I Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory I Autoset of operating parameters I Electronic torque adjustment with automatic calculation for each point in the stroke (STC SYSTEM) I Separate electronic adjustments of opening and closing speeds I Anti-crushing safety through amperometric detection I Virtual encoder I Adjustable slow-downs I Built-in energy saving system ESA+ I Advantouch system to configure parameters and manage radio transmitters I Number of manoeuvres I Programming access password I Maintenance warning I Built-in battery charger, compatible with batteries model DA.BT2/DA.BT6.
