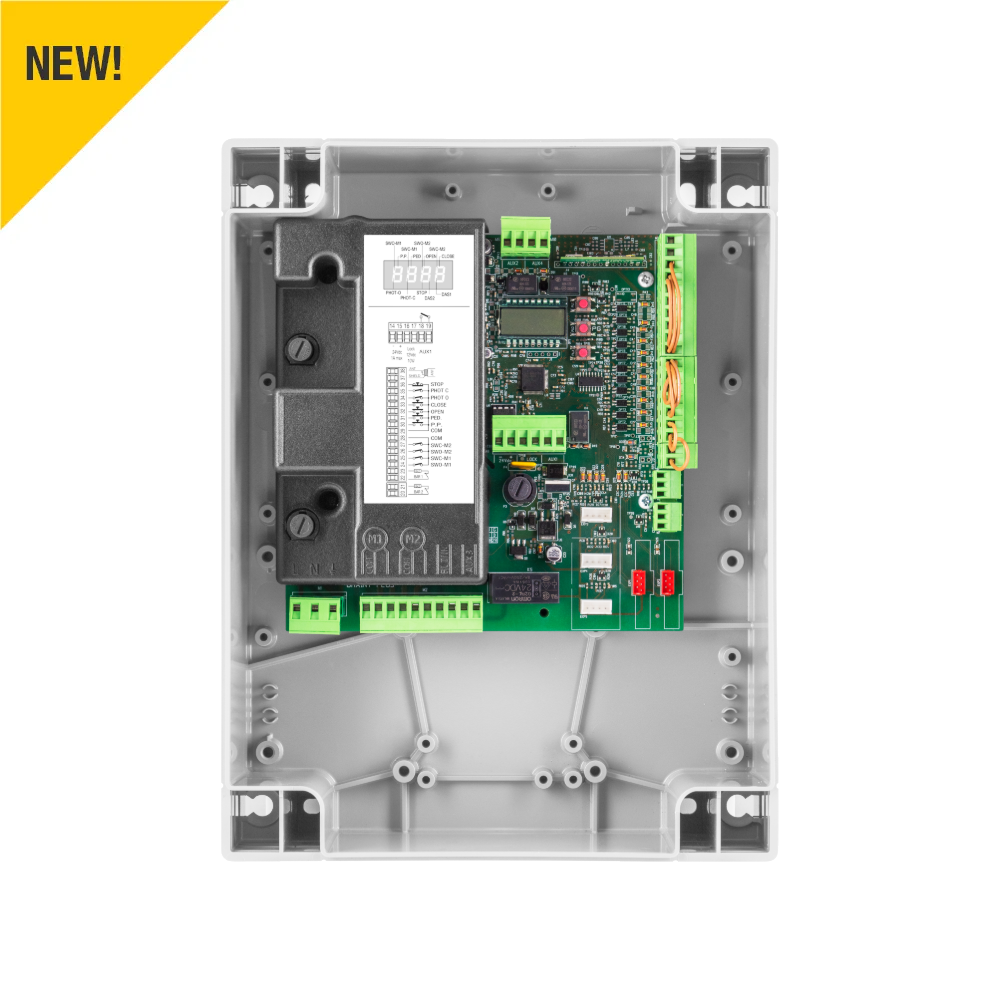

BRAINY.PLUS

APPLICATION

1 or 2 actuators for swing gates, opposed sliding gates, and industrial folding doors with a maximum of 2 sections

CONTROL UNIT POWER SUPPLY

100/250 Vac – 50/60 Hz

MOTORS POWER SUPPLY

230 Vac 600W + 600W

MAIN FUNCTIONS

Integrated LCD display | Integrated radio receiver 433.92 MHz 516 codes and 3 radio encodings (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal blocks | Automatic, semi-automatic and deadman operating logic | Encoder input for obstacle detection | Separate limit switch inputs for each motor | Open, close, pedestrian, step-by-step, stop inputs | Separate inputs for photocell active in opening-closing and photocell active only in closing | Input 2x for NC or 8K2 sensitive edge | Output for 12/24 Vac/dc electric lock | Outputs configurable as open gate warning light, courtesy light, second radio channel or photocell test | Output for flashing light connection | Autoset of operating parameters (with motors equipped with encoder) | Separate | electronic adjustment of torque for each motor and working times | Adjustable slowdowns | Possibility of configuring parameters and managing radio controls with the Advantouch system | Number of maneuvers | Access and programming password | Maintenance warning
