Description
APPLICATION

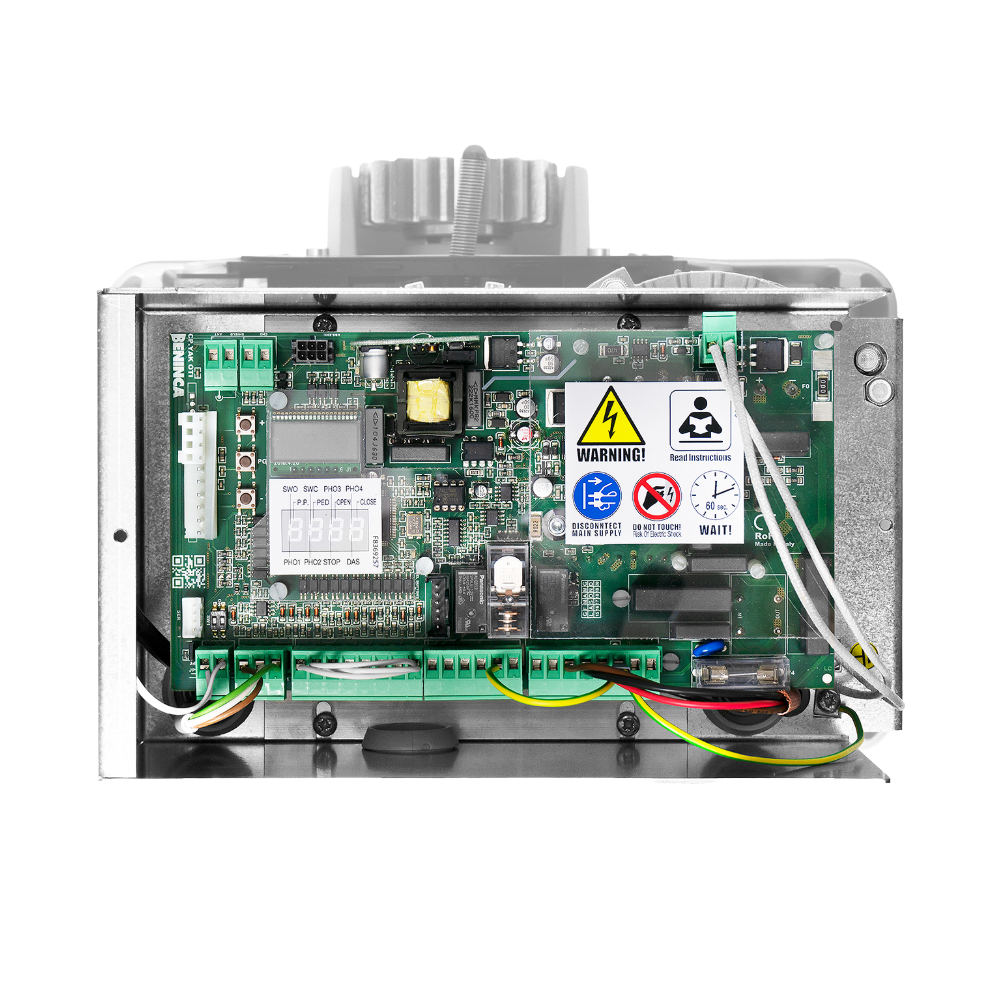

1 actuator for sliding gates, series BULL17 OMI
CONTROL UNIT POWER SUPPLY
230 Vac – 50/60 Hz
MOTORS POWER SUPPLY
230 Vac
MAIN FUNCTIONS
Integrated LCD display I ONE2.WI model 433.92 MHz radio receiver provided as standard equipment | Removable terminal boards I Automatic, semi-automatic and HTR logic I Motor limit switch inputs I Step by step, open, close, pedestrian and stop inputs I no. 2 photocell inputs configurable as active in opening-closing or in closing phases I Input for N.C or 8K2 sensitive edge I Input for safety sensor I Output configurable as gate open indicator, service light, area light I Photocell testing output I Output for connecting flashing light I Second radio channel output Autosetting of operating parameters I Electronic torque adjustment with automatic calculation for each point in the stroke (STC SYSTEM) I Anti-crushing safety thanks to amperometric obstacle detection I Adjustable slow-downs I Advantouch system to configure parameters and manage radio transmitters I Integrated inverter I Virtual encoder I Number of manoeuvres I Programming access password I Maintenance warning.
